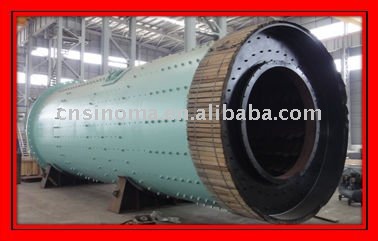

Ball Mill

cement mill/ball mill

The high efficient ball mill produced by our company is designed by adopting good points and avoiding shortcomings based on features of the open-circuit grinding system. Compared to the same size ball mill, in addition to advantages of the open-circuit mill, the capacity has increased a lot, the powder is finer and the specific surface(blaine) is bigger. This ball mill,with features of high capacity and high fineness, is a new type of grinding equipment for producing high quality cement. It has adopted special integrate diaphragm and discharge grate to adjust material levels of every chamber so as to increase air ventilation and improve condition inside mill; Meanwhile, it has also used new type of lining plate, regulated mill rotation speed, optimized gear designing and lubrication parameters of bearing bushes so as to increase its operational stability, service life and grinding efficiency.

MAIN TECHNICAL DATA

Size (φ×m)	Speed(r/min)	Feed Size (mm)	Capacity(t/h)	Loading Weight of Mill Ball(t)	Motor Power(KW)	Main Reducer(Overall Ratio)
φ2.6×10	20.6	≤25	21-24	64	800	6.3
φ2.6×13	20.6	≤25	28-31	81	1000	6.3
φ3.0×9	19.13	≤25	40-45	85	1000	7.1
φ3×11	18.92	≤25	44-47	95	1250	7.1
φ3×12	18.92	≤25	48-52	103	1250	7.1
φ3×13	18.92	≤25	39-45	116max	1400	7.1
φ3.2×11	18.3	≤25	45-48	112max	1400	7.15
φ3.2×13	18.7	≤25	50-55	133max	1600	7.15
φ3.4×11	18	≤25	45-55	120max	1600
φ3.5×13	17	≤25	60-65	156max	2000
φ3.8×13	17	≤25	65-70	190	2500
φ3.8×13	17	≤25	65-70	185	2500
φ4×13	16.3	≤25	78-80	191	2800
φ4.2×11	15.8	≤25	100-110	182-190	2800
φ4.2×13	15.2	≤25	110-120	230	3350
φ4.2×13	15.2	≤25	120-130	245	3350
φ4.6×14	15	≤25	100-115	285	4200
