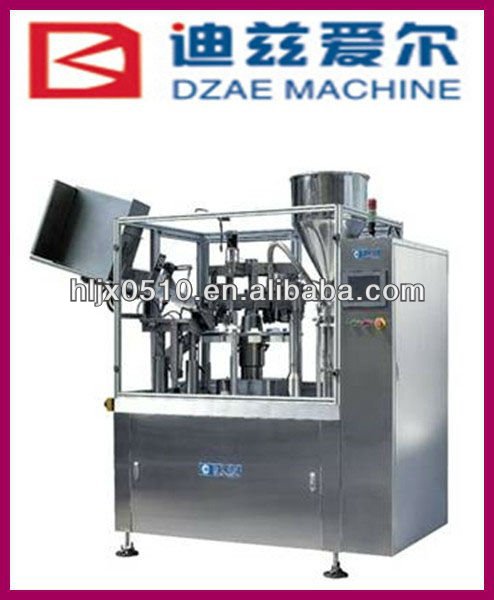

1.Suit for for the soft tube filing and sealing of cosmetics,medicine,daily chemical products, 2.suit for metallic tube - details see: https://www.machineto.com/hlsg-1-automatic-metallic-tube-cosmetic-tube-filling-and-sealing-machine-10056047

The control parts of the machine are composed of intelligent man-computer interface, large touch screen display/operation control panel, including temperature setting, motor speed, filling speed, direct screen display and screen control.The components of the machine which touches the filling material are made of stainless steel SUS304 and SUS316L. Transparent cover, feeding hose, feeding device are also supplied with the machine. The machine is featured with safety switch, auto-stop, soft tube positioning, photoelectric sealing control etc. During the process, hose-feeding and setting, filling and sealing, ejecting are all auto matically controlled. Digital count device is installed at the low front part of the machine. During filling process the filling head is put inside the material pot to avoid air-entrance. For high viscosity filling material, blow-off device is installed to ensure a complete sealing. Many choices of sealing type are available to meet different need of clients.

1.Transmission parts closed below the platform, safe, reliable, non-polluting;

2.Filling and sealing parts mounted on the platform above semi-closed hood static frame visible, easy to observe, easy operation, easy maintenance;

3.PLC control, human machine dialogue interface;

4.Circuitous dial to cam-driven, fast, high precision;

5.Box and Inclined tube position, optionally;

6.The tube escalators and feed the hose pipe on the workstation;

7.Photoelectric standard workstations, high-precision sensor, stepper motor control hose pattern in the correct position;

8.Movable head depth hose injection material inside the hopper, side note side launched at the end of injection material delivery nozzle with a blow integrated approach to ensure the quality of cut filler;

9.No tube no filling;

10.Sealing robot more flexible capacity, can be adjusted in various ways to complete two fold, three fold and saddle fold;

11.Typing code workstations automatically the code printed on the technical requirements of the position;

12.Failure alarm, overload shutdown;

13.Counting and quantitative downtime;

14.The production capacity :30-80 / min

15.Filling capacity :3-120ml

16.Filling error: ≤ ± 0.5%;

17.Main motor power: 2.2kw

18.Working pressure: 0.60MPa
