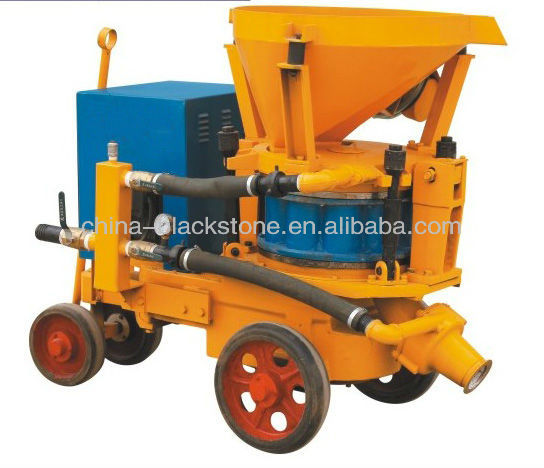

High quality shotcrete spraying machine

High quality shotcrete spraying machine, 1 capacity: 5m3/h, 2 max.jet length:200m, 3 applicable materials; concrete and dinas - details see: https://www.machineto.com/high-quality-shotcrete-spraying-machine-10096338

Condition:New	Max. Conveying Distance:200m	Max Aggregate Size:20mm	Hose Inner Diameter:64 mm
Air Consumption:8~10m3/min	Place of Origin:Henan China (Mainland)	Brand Name:Blackstone	Model Number:PZ-7
Voltage:380V	Power(W):370	Dimension(LWH):1500x700x1280mm	Weight:700kg
Certification:ISO/ TS9001:2008	Warranty:1 year	After-sales Service Provided:Engineers available to service machinery overseas

Technical parameter

Model	PZ-6
Working capacity	5 m³/h
Working air pressure	0.4-0.6Mpa
Air consumption	7-8m3/h
Max transport distance	200m
Applicable water cement ratio	<=0.4
Max diameter of material	20mm
Motor model	Y132-6-5.5KW
Applicable materials	Concrete and dinas
Feeding height	1.1m
Net Weight	600kg
Dimension	1280×700×1280mm

Features:

Non-adhesion going-through rotor with new material chamber, completely eliminate bonding and blocking during operation so as to reduce clearance and maintenance period.
Thin follow conveying method with vortex flow, so the spraying flow is even, continuous and steady, to improve the shotcrete quality.
Four-point clamping device make it easy to adjust the press between sealing plate and rotor disk so as to no air and dust leak and prolong consumption parts life.
Particularly used for dry, damp mix and steel (polymer) fibre reinforced shotcrete.
