Wet Ball Mill, 1.for cement, silicate, ceramic, 2.wet or dry ball mil, 2.Stable working functions;, 4.Easy to operation; - details see: https://www.machineto.com/high-quality-mining-wet-ball-mill-10314577

Wet ball mill

Applications of Wet ball mill

Ball mill is a key equipment for regrinding, it is widely used for the cement, the silicate product, new type building material, fire-proof material, chemical fertilizer, black and non-ferrous metal, glass, ceramics and etc. The ball mill can grind ore or other materials that can be grinded either by wet process or by dry process.

Features of ball mill :

1.This type of ball mill is a kind of traditional ball mill, with rolling bearings (Babbit metal bearing bushing seat)

2. Simple structure, and split installation.

3. It is easy to lift it while installing and maintaining.

4. Its feeders are classified into two types: combined feeder and cylinder feeder.

Working principle of ball mill

1. This ball mill is horizontal type and tubular running device, has two warehouses.

2. This machine is grid type and its outside runs along gear.

3. The material enters spirally and evenly the first warehouse of the milling machine along the input material hollow axis by input material device.

Notes for ordering of ball mill

1. While placing your order, please specify the model, quantity, and the rotating direction as well.

2. Since the ball mills are classified into two types: grate ball mill and overflow ball mill, please specify the type.

Technical Specifications of ball mill

Model	Rotary Speed (r/min)	The feeding size (mm)	The final Size (mm)	Capacity(t/h)	Main Motor (kw)	Weight (t)
900×1800	38	≤ 20	0.075-0.89	0.65-2	18.9	3.6
900×3000	38	≤ 20	0.075-0.89	1.1-4.8	22	4.6
1200×2400	32	≤ 25	0.075-0.6	1.5-4.8	45	12.5
1200×2800	35	≤ 25	0.074-0.4	1.2-3.7	30	11.5
1200×3000	32	≤ 25	0.074-0.4	1.6-5	45	12.8
1200×4500	32	≤ 25	0.074-0.4	1.6-5.8	55	13.8
1500×3000	27	≤ 25	0.074-0.4	2-5	75	17
1500×4500	27	≤ 25	0.074-0.4	3-6	90	21
1500×5700	27	≤ 25	0.074-0.4	3.5-6	110	24.7
1830×3000	24	≤ 25	0.074-0.4	4-10	180	28
1830×6400	24	≤ 25	0.074-0.4	6.5-15	210	34
1830×7000	24	≤ 25	0.074-0.4	7.5-17	245	36
2200×5500	21	≤ 25	0.074-0.4	10-22	370	48.5
2200×6500	21	≤ 25	0.074-0.4	14-26	380	52.8
2200×7000	21	≤ 25	0.074-0.4	8-36	380	50
2200×7500	21	≤ 25	0.074-0.4	16-29	475	56
2100×2700	24	≤ 20	0.074-0.4	3.5-25	150	33
2100×3500	24	≤ 25	0.074-0.4	4.5-33	180	37

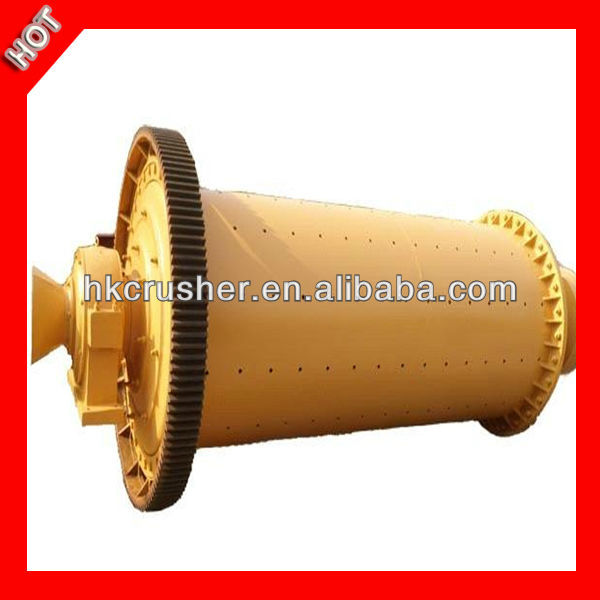

Pictures of ball mill :
