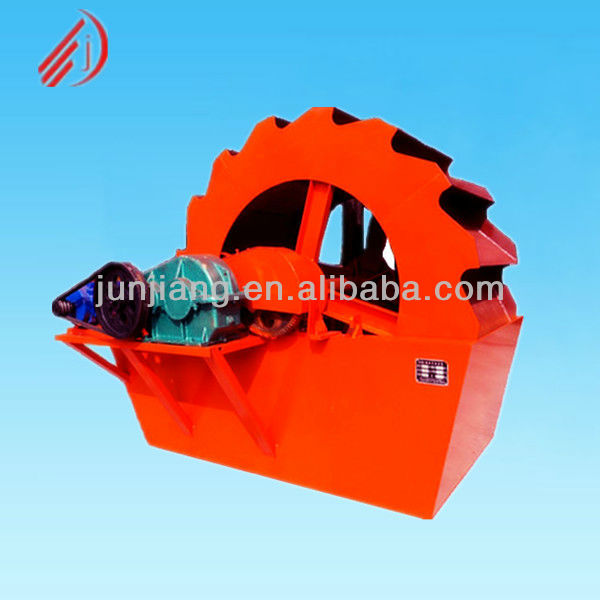

Sand Washing Machine Model No.:XS2210, Wheel bucket diameter(mm):2200, Rotate speed (r/min)::1-2, Capacity(t/h):15-30 - details see: https://www.machineto.com/high-performance-roller-sand-washing-machine-for-construction-10320566

Sand Washing Machine Introduction:

I, Sand Washing Machine Description:

XS series roller sand washing machine is high efficient sand washing equipment of our factory which introduced advanced technology, combined with the actual situation ofsandstone equipment industry of domestic. Have the feature of high washing quality, reasonable structure, big production, less sand loss in the process of washing sand. Especially the transmission parts isolated with water and sand, therefore, the failure rate is greatly lower than common used spiral sand washer. So it is the best choice of upgrading for washing sand industry.

II,Sand Washing MachineApplication:

Sand washer is widely used in building land, sand plant, hydropower station, concrete dam, etc

III, Features ofSand Washing Machine:

1, Smooth operation, rigorous sealing system

2, less maintenance, big processing capacity

3, Lower sand water content

4, powder content, silt content

It also can take different quality of sand according to the needs of different users.

IV,Sand Washing MachineWorking principle:

The product of sand washer using water buoyancy effect to separate the dust, impurities and sand, and after impeller blade agitation to filter water, to impurities, then improve the quality of the sand. What’s more during the process of agitating also do the work of mixing which product the good quality sand.

VI, XS series high efficiencySand Washing Machinetechnical parameters:

Model	XS2210	XS2610	XS2910	XS3018
Wheel bucket diameter(mm)	2200	2200	2600	3000
Rotate speed (r/min)	1-2	1-2	0.8-1.5	0.8-1.2
Capacity(t/h)	15-30	20-50	50-100	120-180
Motor power (kw)	4	5.5	7.5	11
Overall dimensions(mm)	3150x1910x2280	3520x2390x2690	3820x2640x3200	2060x3770x3070

Note: This is just for reference
