grinding mill equipment

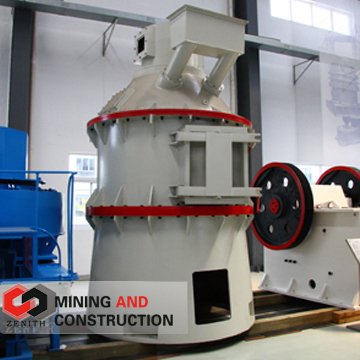

Vertical Mill is a new mill of high efficiency and low consumption, studied by numbers of our engineers, for solving the difficulty of high energy consumption in mill industry. It adopts new grinding principle, new structure, strong bearing materials, and absorbing lots of technical essence of mill. Therefore the performance of STM vertical mill indicators is over traditional mills greatly. Especially, it is very efficient for crushing high hardness and hardworking materials and it can work under both dry and wet condition. STM vertical mill has these characteristics: small metal worn, little dust, simple and firm structure, and easy maintenance. It is a revolutionary technical change in mill industry. Customer can benefit much from it and it really fulfills the desire of industrial fields - high efficiency and low consumption.

Technical Advantages:

1. Outstanding design.
2. High productivity.
3. High reduction ratio
4. Long service time
5. Environmental protection

LM Series Vertical Ore Mill Specification

Model		LM130K	LM150K	LM170K	LM190K	LM220K	LM240K
Turnplate diameter (mm)		1300	1500	1700	1900	2200	2400
Capacity (t/h)		10~30	13~40	18~57	23~72	36~114	41~128
Final product size	μm	170~45	170~45	170~45	170~45	170~45	170~45
	mesh	80~325	80~325	80~325	80~325	80~325	80~325
Final product water percentage		≤1%	≤1%	≤1%	≤1%	≤1%	≤1%
Max. input size (mm)		<38	<40	<42	<45	<50	<55
Best water percentage of raw material		<4%	<4%	<4%	<4%	<4%	<4%
Drying needed if water percentage is more than		<15%	<15%	<15%	<15%	<15%	<15%
Input wind temperature (°C)		<350	<350	<350	<350	<350	<350
Output wind temperature (°C)		70~95	70~95	70~95	70~95	70~95	70~95
Main motor power (KW)		185~220	250~280	355~400	450~500	710~800	800~900
Overall dimension	L mm	3500	4200	4700	8500	10200	11700
	W mm	3400	3900	4500	5600	6700	7700
	H mm	5800	7100	8300	8800	10600	12200
Weight (t)		48	75	90	100	125	160
