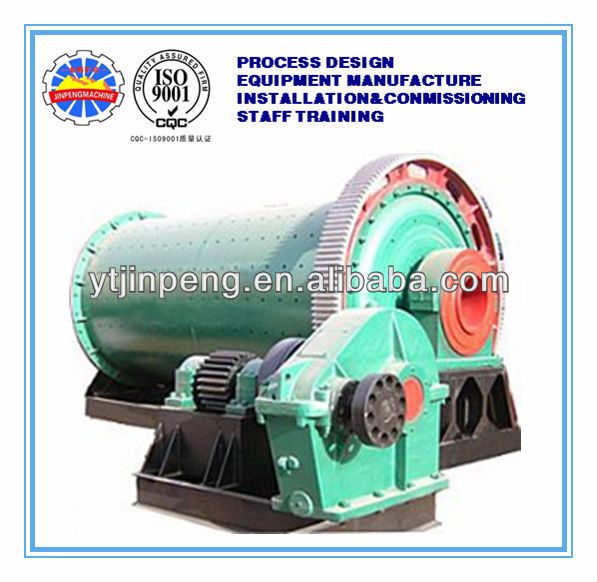

Gold mining high efficiency ball mill sold to more than 30 countries

(2)Large capacity: for the outlet disk and the checked liner are adopted, the capacity is higher 20% than the cone ball mill.

(3)The discharging port slurry surface is low, slurry flow through rapidly, decrease ore over-grinding.

(4)Load of ball is large, big balls, small balls be loaded in, and small balls can’t be discharged, and can form good working conditions.

The model is as follows:

straight energy conservation ball mill

the model is as follows:

wet grid (overflow) ball mill

the model is as follows:

dry grid ball mill

the model is as follows: MQG0909 MQG0918 MQG1212 MQG1224 MQG1515 MQG1530

rod mill

model is as follows: Yantai Jin Pengwei you provide the exquisitest ball mill technique of manufacture and the most just ball mill price!

Usually used in the following similiar process of gold,silver,copper, lead zinc, molybdenum and so on.

Startup of ball mill

A. Check if all connecting bolts are tightened before startup of ball mill, and if there is any loosening with all connected parts.

B. Check if lubrication of oil site meet requirements.

C. Check if there is anything around ball mill and sorting machine, which may prevent the machines from running.

D. Startup sequence for devices of loop; start ball mill before sorting machine, followed by ore feeding after normal running.

Stop of grinding loop:

If grinding loop stops running, stop ore feeder first. Then stop ball mill after the ores are processed inside the drum of ball mill. Take out the screw axis of the sorting machine out of the sand surface. Stop the sorting machine finally.

Provide ore dressing experiment,process design and onsite engineering service.

Welcome to visit our lab, design institute and factory!
