FY-GD350 Steel Strip Wrapping Machine

Steel Strip Wrapping Machine, 1. Suitalbe for various metal coils, 2. Easy to operate with PLC, 3. Make as your specifictions - details see: https://www.machineto.com/fy-gd350-steel-strip-wrapping-machine-10065587

Type:Wrapping Machine	Condition:New	Application:Machinery & Hardware	Packaging Type:Cartons
Packaging Material:Plastic	Automatic Grade:Automatic	Driven Type:Electric	Voltage:380V 50HZ
Power:2.0kw	Place of Origin:Shanghai China (Mainland)	Brand Name:Fengye	Model Number:FY-GD350
Dimension(LWH):12509501800mm	Weight:600	Certification:CE	After-sales Service Provided:Engineers available to service machinery overseas
color:green,blue

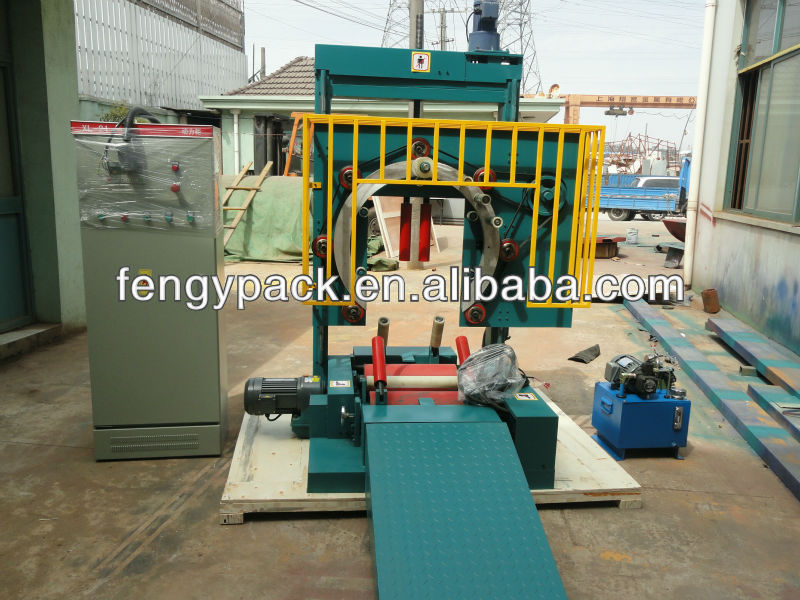

Steel Strip Wrapping Machine

The machine is mainly designed for outside overlapped wrapping of steel wire coil, PC strand, tyre, black wire coil,copper wire coil and etc.

Features:

*To&fro working mode safe&easy to operate;

*The converter is adopted to adjust the overlap of the packing tape according to the requirement;

*The tension of packing tape could be adjusted;

*Support-roller&protect-roller are wrapped with polyamide adhesive;

*The fix device is adopted for the ending of the adhesive tape.

TECHNICAI DATA:

ITEMS	GX300	GX500	GX800
Object Width	≤500mm	≤1000mm	≤2000mm
Object height	≤300mm	≤500mm	≤800mm
Object OD	500-1000mm	600-1200mm	1000-2000mm
Object ID	≥300mm	≥400mm	≥700mm
Roller speed	2-4m/min	2-4m/min	2-3m/min
Ring speed	30-50r/min	30-50r/min	20-40r/min
Suitable material	Knit tape,paper tape etc.	Knit tape,paper tape etc.	Knit tape,paper tape etc.
Material width	100-150mm	100-150mm	150mm
Material OD	150mm	150mm	200mm
Material ID	54mm	54mm	54mm
Power output	About 3.0kw	About 4.5kw	About 6.0kw
Power voltage	380V,	380V,	380V,
