air permeability tester: Patend machine, Fully automatic, easy to use, just press down,the result would give out in 10 seconds. - details see: https://www.machineto.com/fully-automatic-air-permeability-instrument-10276382

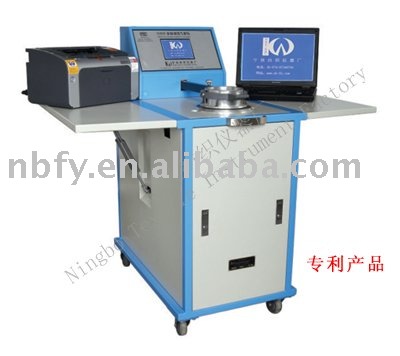

air permeability instrument

Model:YG461H
It is used to test the air permeability of various woven fabrics, knitted fabrics,
non-woven fabrics, industrial filter materials etc.
Patent Machine
YG461 E-III and YG461H fully automatic air permeation testers can quickly, concisely, accurately test the air permeability of various plane materials (fabrics, non-woven fabrics, paper, foam board etc.)
StandardAFNOR G07-III, ASTMD737, ASTMD3.574, BS5, 636, DIN53,887, EDANA140.1, ENISO7,231, JISL1,096-A, TAPPIT251. GB/T5,453,ISO9237 and so on.
This machine is stick to international standard testing machines.
The test range is wider.
Fully automatic, easy to use
Efficient work, the test result would be given in a few seconds
It support to two languages (English and Chinese)
Data port: RS232 different steps at both directions
A test result evaluation system is installed.
This is a high quality machine at reasonable price.
All the test indexes could be set, digital display.
It could connect with the computer and printer.
Itsstability, repetition, dependability are all accord with international lever.
It is suit to lab using and manufacturer scene using.
Technical index:

Model	YG461H
Operation display	Big screen LCD display.
Measuring unit	mm/s, cfm, cm3/cm2/s, L/m2/s, L/dm2/min, m3/m2/min
Test accuracy	better than ±2
Test pressure	50-4000pa
Test area /test tip	5,20,25,50,38100c (choose to use)
Collocation	Could connect with computer and printer
Mains and wattage	220V±10% 50Hz.1100W
Outline dimension	750*465*1050(mm)
Gross weight / net weight	130Kg/105Kg
