Four-Side Thicknesser
Max. working width:400/500mm, Max. working thickness:20-120mm, Max. planning depth:5/3/5/5mm - details see: https://www.machineto.com/four-side-thicknesser-10353973
| Condition:New | Type:Thicknesser,double sides | Place of Origin:Shandong China (Mainland) | Brand Name:AMAZONA |
| Model Number:MB404, MB405 |

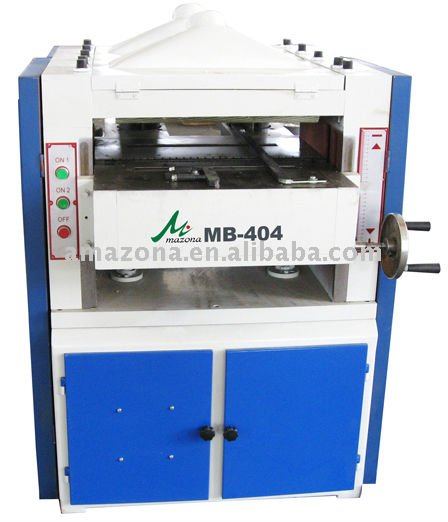

- MB404, MB405 Four-Side Thicknesser
| Model | MB404 | MB405 | |
| Max. working width | mm | 400 | 500 |
| Max. working thickness | mm | 20-120 | 20-120 |
| Max. planning depth | mm | 5/3/5/5 | 5/3/5/5 |
| Arbor speed | r/min | 8000 | 8000 |
| Feeding speed | m/min | 9.2/7.5 | 9.2/7.5 |
| L&R spindle speed | r/min | 7000 | 7000 |
| Arbor Motor power | kw | 5.5 | 5.5 |
| L&R spindle motor power | kw | 3/3 | 3/3 |
| Packaging Detail:wooden case |
| Delivery Detail:30DAYS |
