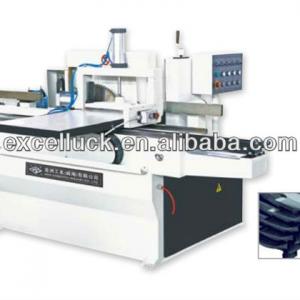

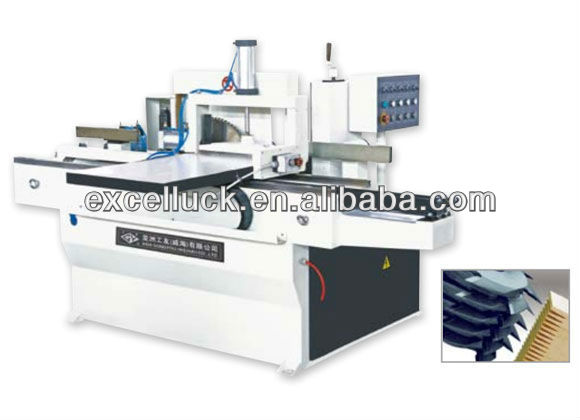

Finger tenon shaper

Finger tenon shaper:, 1.Max. working thickness:150MM, 2.Max. working width:500MM, 3.Sawblade speed:6050r/min - details see: https://www.machineto.com/finger-tenon-shaper-10342166
Condition:NewSpindle Speed:6050rpmAir Pressure:0.6-0.8MPaMax. Working Width:500mm
Max Working Height:150mmPlace of Origin:Shandong China (Mainland)Brand Name:Excel LuckModel Number:EMXB3515
Power(W):11kwDimension(L*W*H):2930x1750x1740mmWeight:1500kg
Finger tenon shaper
contact supplier for Finger tenon shaper


Finger tenon shaper

Specification:

Spindle speed6050r/min
Sawing spindle speed2840r/min
Max. working thickness150mm
Max. working width500mm
Spindle dia.50mm
Big sawblade size450x30
Small sawblade size200x30
Finger cutter size160x50
Wortable stroke1500mm
Air source pressure0.6-0.8Mpa
Spindle motor power11kw
Big sawblade motor power4kw
Small sawblade motor power1.5kw
Finger tenon length0-15mm
Oil pump max. pressure70kgf/cm2
Oil pump motor power2.2kw
Overall dimensions2930x1750x1740mm
Net. weight1500kg

Packing and delivery

Casting workshop

Technical team

Finger tenon shaper
Packaging Detail:Strong plywood cases
Delivery Detail:Timely
