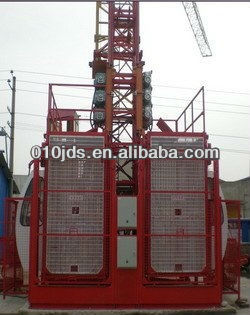

SC200/200TD BUILDING HOIST, CAPACITY: 2* 2000KG, SPEED: 38 M/MIN, GALVANZIED MAST SECTION, CABIN: 3.2 *1.5*2.5M (L*W*H) - details see: https://www.machineto.com/electric-hoist-lifting-speed-38m-min-10097402

Item No.	Item	Specification of construction hoist
1	Model Number	SC200/200A
2	Place of Origin	Beijing, China ( Mainland)
3	Brand Name	JDS
4	Drive Type	Rack & Pinion
5	Elevator Type	Goods & passengers Elevators
6	Lifting height	According to customers’ requirement
7	Single-cage/ Double-cage	Available
8	Certificate of quality	ISO9001:2000
9	Model of safe guard machine	SAJ4.0-1.2(SC)
10	Main electrical system	Schneider( Germany)
11	Reducing device	TCW125A/B(Tianjin Aoya)
12	Motor	YZZ1-1.5/133( Jiangsu Yalian)
13	Usage	Construction Material and passengers hoist
14	Rated load	2000 Kgs
15	Rated lifting height	28-38 m/min
16	Max lifting height	150 m
17	Bulk of the hoist cage(length width height)	3.2*1.5*2.7 m* m*m
18	Inside height of the hoist cage	2.4 M
19	Mast section	0.65 * 0.65* 1.508 m* m* m
20	Starting current	270 A
21	Operating current	70 A
22	Power consumption	13 * 3 KVA
23	Power of electromotor	11 *3 KW
24	Quality of standard joint	140 Kg
25	Quality of whole machine	20 T
