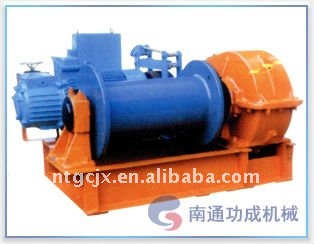

1, good lifting capacity, 2, small and light weight, 3, flexible and safe operation, 4, durable - details see: https://www.machineto.com/electric-fast-speed-winch-10096919

This machine is generally used for hoisting,moving,loading and unloading heavy loads, such as installing and moving large-sized concrete, steel structure and equipment.

Model	JKD1	JKD2	JKD3	JKD5	JKD8	JKD10
Wire cable rated pull KN	10	20	30	50	80	100
Wire cable rated speed m/min	33	30	30	30	30	30
Wire cable Diameter mm	9.3	15.5	17	21.5	26	31
Roll canister capacity m	100	200	200	300	300	400
Motor	YZR160M2-6	YZR180L-6	YZR200L-6	YZR250M-6	YZR280S-8	YZR315S-8
Power KW	7.5	15	22	30	55	75
Outer dimention mm	1020x930x550	1200x1400x750	1300x1530x850	1640x1890x950	1980x2040x1220	2230x2450x1580
Total weight KG	480	1300	1850	3100	5850	8500

• We can design and manufacture different non-standard products according to customers' demands.
