Rod Mill:, 1.High-efficiency,energy saving, 2.Overflow or grid type, 3.ISO9001:2008/IQnet, 4. Professinal manufatur - details see: https://www.machineto.com/dry-type-silica-rod-mill-with-iso9001-2008-certificate-10314092

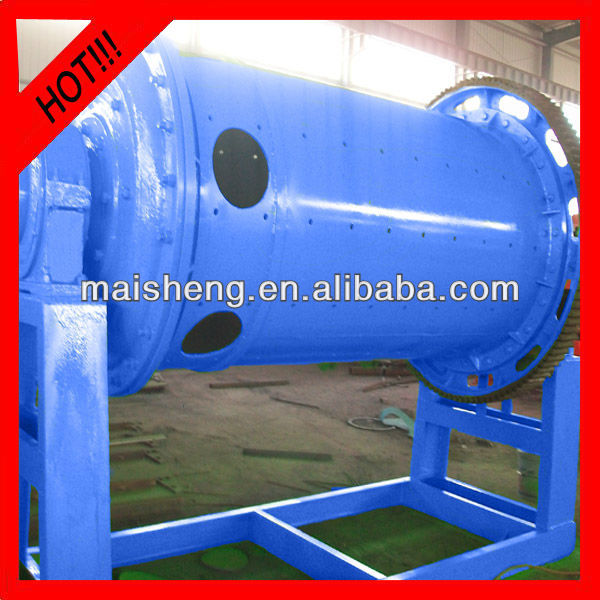

Dry Type Silica Rod Mill with ISO9001:2008 Certificate !

• Rod Mill Introduction:

Rod Mill can be used to process or crush feldspar, quartz and ore. It can also suitable for fine and medium crushing of hard and brittle materials, such as abrasive material, fireproofing material, concrete, steel shot, copper ore, iron ore, gold ore, concrete aggregate, asphalt aggregate, etc.

In addition, our rod mill is especially suitable for crushing river gravel to make sand. It's a kind of effective and energy saving sand making machine which can save more energy (50%) than traditional sand making machines.

• Rod Mill Working Principle:

The rod mill is a horizontal rotating device transmitted by the outer gear.The materials are transferred to the grinding chamber through the quill shaft uniformly.There are different liner and grinding rod in the chamber.

Rod mill rotates at a certain speed. Under the influence of friction force and centrifugal force, grinding rod rises to a certain height and is thrown down. During the process, materials are impacted and grinded.

• Rod Mill Structure:

• Rod Mill Features:

1). Efficient tool for grinding many materials into fine powder.
2). Widely used in building material and chemical industry.
3). Can be used both dry and wet.

4). High-efficiency,Energy saving
5). Used to grind glass, powder food products, create custom varnishes, make ceramic glaze, powder various chemicals.

• Rod Mill Main Technical Parameters:

Model	Mill body size(mm)		Rotating speed (r/min)	Feeding rod weight (t)	Feeding granularity (mm)	Discharging granularity (mm)	Output (t/h)	Motor power (kw)	Overall dimensions (mm)	Weight (kg)
	Diameter	length
MB0918	900	1800	29.0-31.3	2.3	<25	0.16-5	1.6-6	22	5900×2365×2015	4200
MB0924	900	2400	29.0-35.4	3.1	<25	0.16-5	2.9-10	30	5250×2480×2127	5300
MB1224	1200	2400	27.0-34.0	6.5	<25	0.16-5	5.0-13	37	5829×2867×2540	11800
MB1530	1500	3000	26.5-29.5	11.5	<25	0.16-5	6.0-25	90	7635×3329×2749	18170
MB1830	1800	3000	21.6-22.8	17.5	<25	0.16-5	4.8-28	155	8007×3873×3023	35000
MB2130	2100	3000	19.0-21.0	23.5	<25	0.16-5	12.6-30	210	9000×2800×3800	43000
MB2136	2100	3600	19.0-21.0	23.2	<25	0.16-5	15.1-45	245	9600×2800×3800	48000
MB2736	2700	3600	17.2-18.5	47.0	<25	0.16-5	25.0-75	400	10870×6100×4950	71500
MB2740	2700	4000	17.2-18.5	51.0	<25	0.16-5	27.7-90	430	11500×6100×4950	73600
