1.Customized products, 2.ISO9001:2008, 3.Loading of Ball:1.5-117t, 4.Speed:18-38r/min, 5.Output Granularity :0.074-0.8mm - details see: https://www.machineto.com/dongfang-ball-mill-price-planetary-ball-mill-10314137

DongfangBall mill price /Cement ball mill /Dry ball mill

1. DongfangBall mill price /Cement ball mill /Dry ball millintroduction

The ball mill is a key equipment for grinding materials, widely used in powder-making production line such as cement, silicate sand, new-type building material, refractory material, fertilizer, ore dressing of ferrous metal and non-ferrous metal, glass ceramics, etc. Ball mill can grind various ores and materials with dry type or wet type. There are two kinds of ball mills, grate type and overfall type due to different ways of discharging material.

2. DongfangBall mill price /Cement ball mill /Dry ball millUsage (dry or wet):

Ball mill is the key equipment for grinding after the crushing process, which is widely used in the manufacture industries, such as cement, silicate, new building material, refractory material, fertilizer, ferrous metal, nonferrous metal and glass ceramics and can be used for the dry and wet grinding for all kinds of ores and other grind-able materials.

3. DongfangBall mill price /Cement ball mill /Dry ball millWorking principle:

This machine is a skeleton pattern ball mill with horizontal cylindrical turning gear, driven by outer gear and two hoppers. The material goes to the first hopper after the spiraling by the quill shaft from the feeding equipment. The hopper has ladder sheathing or corrugated sheathing with steel balls inside, which will fall under the effect of centrifugal force by barrel and grind material. After the kibbling in the first hopper, by monolayer partition panel, the material will enter the second hopper, which has plane scale board with steel ball inside to grind material. The powder material will be discharged from the grid plate to finish the grinding.

4. DongfangBall mill price /Cement ball mill /Dry ball millStructure:

The Dongfang Ball mill is composed by feeding part, discharging part, turning part and driving part (reducer, small driving gear, electric motor and electric control). The quill shaft adopts cast steel part and the liner is detachable. The turning gearwheel adopts casting hobbing process and the drum is equipped with wear-resistant liner, which has good wear-resistance. The machine is with stable and reliable working condition.

Moreover, according to different materials and discharging methods, there are dry ball mills and wet ball mills for choice

5. Technical Parameter ofBall mill price /Cement ball mill /Dry ball mill

Model	Rotary speed(r/min)	Ball load(t)	Feeding size(mm)	Discharging size(mm)	Capacity (t/h)	Motor power(kw)	Weight(t)
Ø900*1800	36-38	1.5	<=20	0.075-0.89	0.65-2	18.5	4.6
Ø900*3000	36	2.7	<=20	0.075-0.89	1.1-3.5	22	5.6
Ø1200*2400	36	3	<=25	0.075-0.6	1.5-4.8	30	12
Ø1200*4500	32.4	5	<=25	0.074-0.4	1.6-5.8	55	13.8
Ø1500*3000	29.7	7.5	<=25	0.074-0.4	2-5	75	15.6
Ø1500*4500	27	11	<=25	0.074-0.4	3-6	110	21
Ø1830*3000	25.4	11	<=25	0.074-0.4	4-10	130	28
Ø1830*4500	25.4	15	<=25	0.074-0.4	4.5-12	155	32
Ø2100*7000	23.7	26	<=25	0.074-0.4	8-48	280	50
Ø2200*4500	21.5	27	<=25	0.074-0.4	9-45	280	48.5
Ø2200*7500	21.7	35	<=25	0.074-0.4	15-30	380	56
Ø2400*3000	21	23	<=25	0.074-0.4	7-50	245	54
Ø2400*4500	21	30	<=25	0.074-0.4	8.5-60	320	65
Ø3200*4500	18	65	<=25	0.074-0.4	-----	800	137

6.Ball mill price /Cement ball mill /Dry ball mill

For more model and technical information, please contact with us directly.

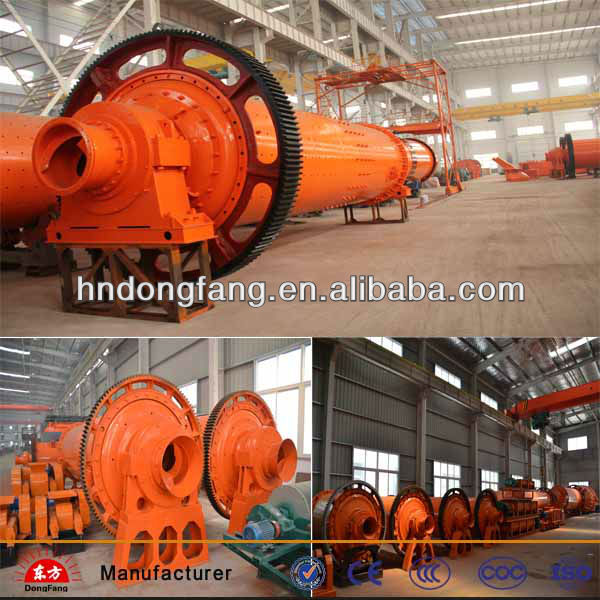

7.Ball mill price /Cement ball mill /Dry ball mill-- Our workplace:

Dongfang Ball mill price /Cement ball mill /Dry ball mill
