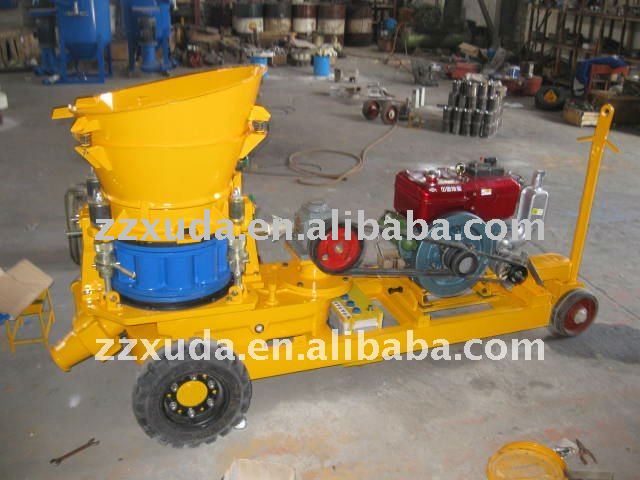

Diesel driven Dry-mix concrete gunite machine

1.Diesel driven, 2.20 years experience, 3.Certificate:MA, 4.Output:3,5,7,9m3/h, 5.Exported to Germany,Greece,UAE,India - details see: https://www.machineto.com/diesel-driven-dry-mix-concrete-gunite-machine-10096563
Condition:NewMax. Conveying Distance:200mMax Aggregate Size:10mmHose Inner Diameter:51 mm
Air Consumption:7m3/minPlace of Origin:Henan China (Mainland)Brand Name:XudaModel Number:PZ-5
Voltage:380VPower(W):4KWDimension(L*W*H):2400x800x1200mmWeight:900kg
Warranty:1 yearAfter-sales Service Provided:Engineers available to service machinery overseasColor:ColorfulDriven:Adjustable
Output:5m3/hSpare parts:Timely supplyInstallation and operation:According to your requirementApplicatin:Construction,Mining,tunnel,etc
Max stone size:15mmManpower:3 people
Diesel driven Dry-mix concrete gunite machine
contact supplier for Diesel driven Dry-mix concrete gunite machine


PZ-5 Diesel engine concrete shotcrete machine

Applications:

1. XuDa PZ-5 Gunite machine is a kind of Shotcrete machine for tunnels,hydro-power engineering,mines,

underground engineering, civil engineering and slope stabilization,etc

2. Atificial soil seeding for no soil surface, such as rock, sand, and for no fertility soil surface.

3. Refractory material spraying and repair for industrial kilns or kilns’s inner liner.

Features:

  1. Advantages:This is a high-effective shotcrete machine,which is mainly used for dry-mix, damp-mix shotcreting and steel fiber reinforced shotcreting.
  2. Non-adhesion going through rotor with new material chamber, completely eliminate bonding and blocking during operation so as to reduce clearance and maintenance period.
  3. Four-point clamping device make it easy to adjust the press between sealing plate and rotor disk so as to no air and dust leak and prolong consumption parts life.
  4. Thin flow conveying method with vortex flow, so the spraying flow is even, continuous and steady, to improve the shocrete quality.

Technical Data:

ItemPZ-5
Output5.5m3/h
Max. conv. dist200m
Water cement ratio0.4
Max. Aggregate. size15m
Hose inner size50mm
Operating air pressure0.2~0.6MPa
Air consumption7~8m3/min
Motor power5.5kW(7.5hp)
Voltages380v,440v,660v,1140v 50HZ/60HZ
Basic chassisBasic chassis is type, skid,

rail-wheel are optional

Customer from India

Packing details

Accessaries for free

Machine in factory

Diesel driven Dry-mix concrete gunite machine
Packaging Detail:Wooden box or customized
Delivery Detail:5 days
