1 SR-L Series slotting machine, 2 chain feeding model, 3 die cutting machinery - details see: https://www.machineto.com/die-cutting-machinery-10053519

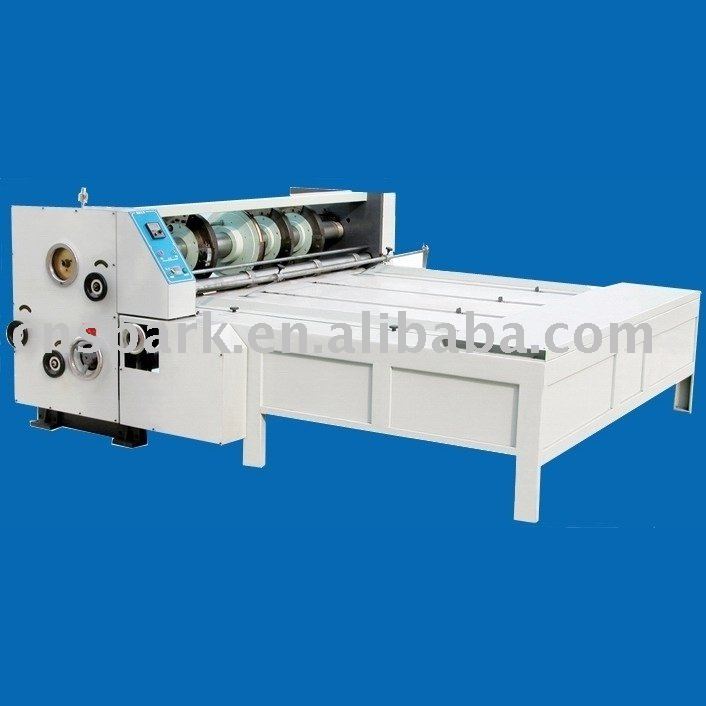

die cutting machinery (SR-L series slotting machine )

Standard equipments:

Paper feeding unit:

· It adopts chain feeding model controlled by stepless speed regulation.

· Lead edge of paper feeding is equipped with elastic feeding pressure plate to ensure the bent paperboard to be smoothly sent in.

· Optically controlled counter presets order number to plan the production.

Slotting Unit:

· Three groups of slotting, one group of corner cutting, two groups of slitting with four groups of creasing.

· Mechanical phase adjustment is read by dial.

· Slotting height is adjusted in linkage of four knives.

Complete Machine:

· Joggling function enables adjusting workers to operate independently.

· Emergent stopping function secures the operation without any waste.

· The whole machine axles and rollers are all plated with rigid chrome and grinded surface.

· Working platform adjustment with clutch makes size rectification convenient.

main parameter

SERIAL	WYAZS NAME	UNIT	MODEL
			2200	2600
1	Paper coverage area	mm	1500×2100	1500×2500
2	Min.finish size(length×width)	mm	380×500	380×500
3	Processing speed	Pieces/min	0-60	0-60
4	Power of main motor	kw	3	3
