concrete placing boom pump manufacturer

concrete placing boom, 1.Germany DEUTZ diesel engine,REXROTH oil pump, 2. American VICKERS valve, 3. Remote control devic - details see: https://www.machineto.com/concrete-placing-boom-pump-manufacturer-10093068

Condition:New	Power Type:Diesel	Place of Origin:Henan China (Mainland)	Brand Name:Unique
Model Number:ZLJ5433THB	Power(W):300KW	Weight:28350kg	Dimension(LWH):1172025003820 mm
Certification:CE	Warranty:12months	After-sales Service Provided:Engineers available to service machinery overseas	Max vertical distance:52m
exhaust emission:EURO 3	Max. theo. outpMax. theo. output ut:120cbm/h	Chassis:HOWO or Benz	Max speed:85km/h

contact supplier for concrete placing boom pump manufacturer

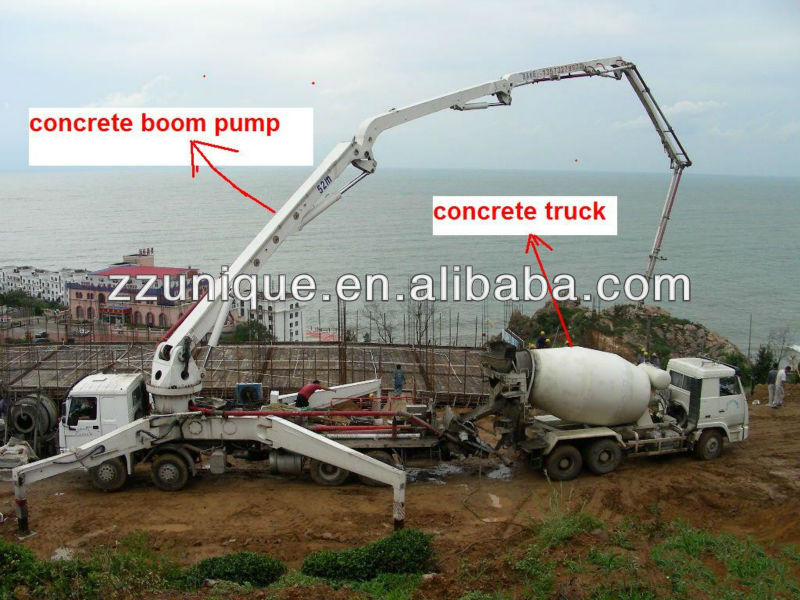

Concretepumpand transit mixer

Spare Parts ofConcrete Placing boom

Top configuration reliable guarantees ofconcrete placing Boom
Develop and produce the most suitable truck-mounted concrete pump for you is our invariable pursuit.

Chassis:Benz, Volvo chassis are luxury, comfort, and excellent in performance; Isuzu, Hinochassis are economic, and perfect in maintenance network; the special chassis made by Unique feature high performance-price ratio.

Engine:the Energy-Saving Technology of power-auto match insure the unionization ratio of the fuel, the fuel consumption is 25% lower than similar truck-mounted concrete pumps, all the emission reach the GB17691-2005 (theⅢstage) or EuroⅢstandard, it is Environment protection and energy saving.

Transfer Case:adopt the original transfer cases from STEIBELL and other companies in Germany; it features good sealing, compact structure, light weight, full lubrication, top brand, and reliable quality.

Parameter of 37mConcrete placing boom

model		ZLJ5282THB125-37
Pumping system	Max. Theo. Output	120m³/h
	Max. output pressure of the concrete	6.5Mpa
	Rated working pressure	32Mpa
	min^-1Pumping frequency	22
	Hopper capacity	550L
	Feeding height	1540mm
	Mode of the hydraulic system	closed
	Mode of the distribution valve	S valve
	Cylinder diameter × stroke	130×2100mm
	Cylinder diameter × stroke	230×2100mm
	Cooling of the hydraulic oil	Air-cooled
	Recommended collapsed slump	12~23cm
	Max. dimension of the aggregates	40mm
booms	Max. pumping height	36.6m
	Max. pumping radius	32.6m
	Max. pumping depth	24.9m
	Slewing angle	365°
	Number of the booms section	4
	Length of each boom	8650/7860/7980/8080mm
	Angle of unfolding the booms	100°/180°/180°/270°
	Diameter of the delivery pipe	125mm
	Length of the end hose	3000mm
Chassis and whole vehicle	Chassis model	FS1ERV
	Drive mode	6×4
	wheelbase	4640+1310mm
	Wheel gauge (front/rear)	2050/1855 mm
	Model of the tyre	295/80R22.5
	Model of the engine	E13C TL
	Max. power of the engine	302/1800 kW/(r/min)
	Max. torque of the engine	1618/1100 N.m/(r/min)
	Displacement of the engine	12913cc
	Type of the fuel	diesel
	Capacity of the fuel tank	400L
	Standard of the exhaust emission	EUROⅢ
	Max. speed of the whole vehicle	85km/h
	Mass of the whole vehicle	28350kg
	Overall dimension of the whole vehicle (L× W× H)	11720×2500×3820 mm
others	Type of lubrication	Auto lubrication of energy-saving type
	Capacity of the hydraulic oil tank	650L
	Type of control	manual+ remote control
	Max. pressure of the water tank	4Mpa
	Capacity of the water tank	550L
	Mode of cleaning the concrete pipes	Water washing/ dry cleaning
