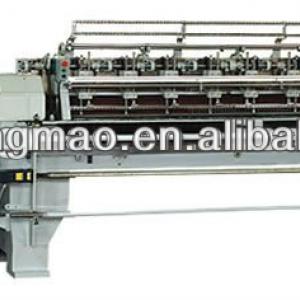

Computerized comforter Quilting Machine

Computerized comforter Quilting Machine, KW C Series are controled by computer, can make out hundreds of pattern - details see: https://www.machineto.com/computerized-comforter-quilting-machine-10264242

Condition:New	Place of Origin:Shandong China (Mainland)	Brand Name:MaoChang	Model Number:KW64C KW94C KW118C KW125C
Max Sewing Speed:600	Max Sewing Thickness:3.5	Number of Head:188	Moving Style:Head Moved
Voltage:380v	Power(W):5.4kw	Dimension(LWH):4.81.751.9	Weight:200kg
Certification:ce,CE	Warranty:1	After-sales Service Provided:Engineers available to service machinery overseas	the number of needle row:2 or 3
Muti or Single Needle:Multi Needle

Techanical Specifications

Control Type	NC simultaneous 2-axis control,linear/arc interpolation
Motor	Step Motor
Stitch Type	Shuttle
Shuttle	7# 10#

Needle	EB16-21
Working Speed	400-600R/M
Power Supply	380V
Power Consumption	5.4kw

Specifications

Model	working width	needle	needle rows	carriage stroke	dimensions(m)
					width	length	height
KW64C	64"(162cm)	128(1"pitch)	2 or 3	12"(30cm)	1.800	4.060	1.900
KW94C	94"(238cm)	188(1"pitch)				4.800
KW118C	118"(299cm)	236(1"pitch)				5.430

Accessories

Model	#		#		needle	crankle hook	tool	pattern
	shuttle	shuttle shelf	shuttle	shuttle shelf
KW64C	140Pcs	70Pcs	140Pcs	70Pcs	300EA	35EA	1 SET	100 EA
KW94C	200Pcs	100Pcs	200Pcs	100Pcs	400EA	50EA

Notice:
The working speed depends on the working situation, eg.the length of the needles, the kind of cloth, etc.
The CARRIAGE STROKE above is under perfect situation, the real value is limited to the patterns.
If the machines do not same with photos, subject to the real objects.

After-service:

1. The machine is guaranteed for one year.

2. we can arrange engineer to debug and install for customers.

Can produce products

CE Certificate

Packaging Detail:Wooden case packing Dimensions:KW64C 4300x1100x2130 KW94C 4600X1100X2130 KW118C5800X1150X2130

Delivery Detail:25 days after receiving advanced payment
