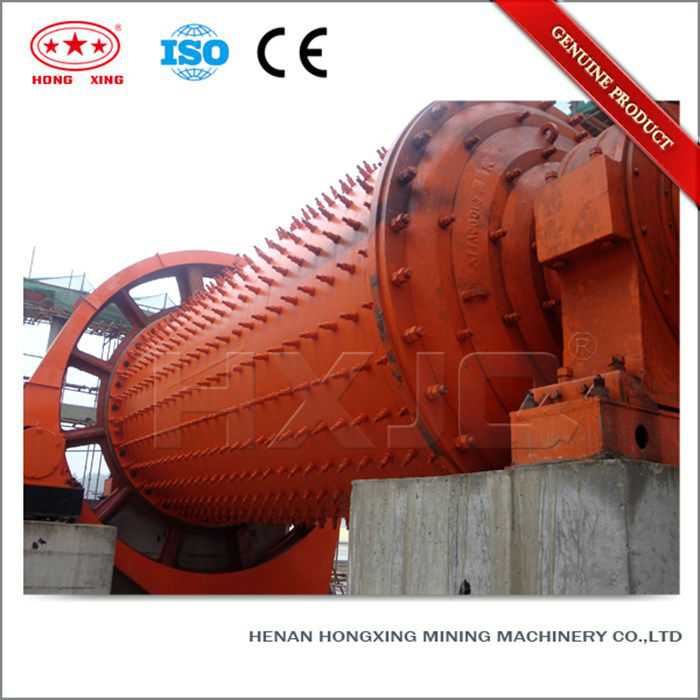

China Hongxing cement ball mill, ball mill, cement mill

Cement ball mill, ball mill, cement mill, 1)Large capacity:2-5t/h, 2)Fineness up to 0.0445mm, 3)max.feeding size:25mm, 4)ISO, CE - details see: https://www.machineto.com/china-hongxing-cement-ball-mill-ball-mill-cement-mill-10314621

Condition:New	Type:Ball Mill	Motor Type:AC Motor	Power(W):75KW
Capacity(t/h):2-5	Place of Origin:Henan China (Mainland)	Brand Name:Hongxing brand	Model Number:ball mill 1500*3000
Dimension(LWH):300015002000 mm	Weight:17 t	Certification:ISO9001,CE	Warranty:12 months
After-sales Service Provided:Engineers available to service machinery overseas	Name:China Hongxing cement ball mill, ball mill, cement mill	Application:mining, ore dressing and cement producing etc	Color:orange, white or on request
Installation:under our engineer's guide	Spare parts:cast steel balls, forged steel ball, ceramic balls or alumina balls

1.Cement ball mill introduction

The ball mill is a key equipment for grinding materials, widely used in powder-making production line such as cement, silicate sand, new-type building material, refractory material, fertilizer, ore dressing of ferrous metal and non-ferrous metal, glass ceramics, etc.

Ball mill can grind various ores and materials with dry type or wet type. There are two kinds of ball mills, grate type and overfall type due to different ways of discharging material.

2.Cement ball millUsage (dry or wet)

Ball mill is the key equipment for grinding after the crushing process, which is widely used in the manufacture industries, such as cement, silicate, new building material, refractory material, fertilizer, ferrous metal, nonferrous metal and glass ceramics and can be used for the dry and wet grinding for all kinds of ores and other grind-able materials.

3.Cement ball millworking principle:

1. This machine is a skeleton pattern ball mill with horizontal cylindrical turning gear, drive by outer gear and two hoppers.

2. The material goes to the first hopper after the spiraling by the quill shaft from the feeding equipment. The hopper has ladder sheathing or corrugated sheathing with steel balls inside, which will fall under the effect of centrifugal force by barrel turning to ram hard and grind material.

3. After the kibbling in the first hopper, by monolayer partition panel, the material will enter the second hopper, which has plane scale board with steel ball inside to grind material.

4. The powder material will be discharged from the grid plate to finish the grinding.

4.Structure ofCement ball mill

The machine is composed by feeding part, discharging part, turning part and driving part (reducer, small driving gear, electric motor and electric control).

The quill shaft adopts cast steel part and the liner is detachable. The turning gearwheel adopts casting hobbing process and the drum is equipped with wear-resistant liner, which has good wear-resistance. The machine is with stable and reliable working condition.

Moreover, according to different materials and discharging methods, there are dry ball mills and wet ball mills for choice.

5.Cement ball mill featurers

1.Large application range, simple structure and convenient maintenance;
2.Large capacity and continuous work are very obvious;
3.Barrel lining and grinding media can apply various abrasive materials;
4.Installation and adjustment are very convenient and easy to be operated.

6.Technical parameters of cement ball mill

7. company profile--Henan Hongxing Mining Machinery Manufacturer

8. Exhibition, workshop, consignment and job site

9.contact us

we will supply the machines with high quality and reasonable price for you. you can contact me from the email and mobile number as below, the best service will be provided.
