uniform ore particle ,easy maintenance, wet or dry ball mill,Easy to operation, wearable structure, energy saved by 30% - details see: https://www.machineto.com/china-ball-grinding-mill-for-grinding-dry-or-wet-ore-material-10314449

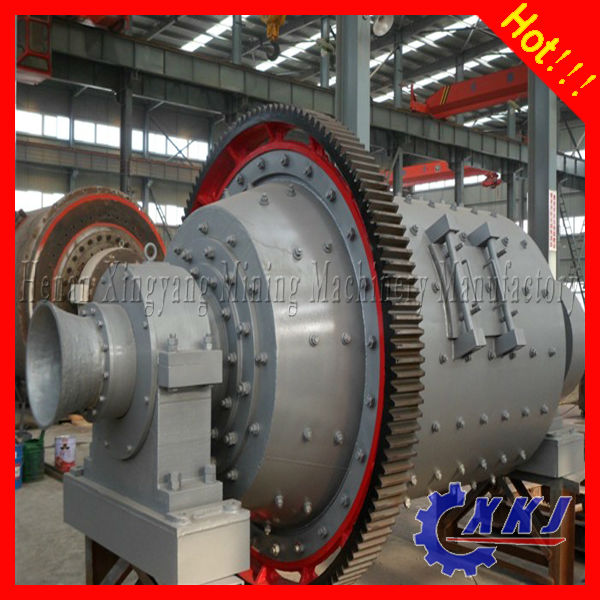

Brief Introduction of ball grinding mill

Ball mill is a type of cylindrical device used to grind (or mix) materials like ores, chemicals, ceramic raw materials and paints.Ball mill rotate around a horizontal axis, partially filled with the material to be ground plus the grinding medium. Different materials are used for media, including ceramic balls, flint pebbles and stainless steel balls.

Working principle of ball grinding mill

Ball mill, a kind of horizontal drum-type rotating device, is a grate mill with external gear and double bins. Materials shall be evenly charged through quill shaft in feeding device into the first bin, which has step or waved lining with steel balls in different specifications. Steel balls are taken to a certain height by centrifugal force from drum rotation and then fall. Thus it will give a heavy blow to materials, playing a role of grinding. Materials after crushed in the first bin shall enter bin across single-layer diaphragm into the second, which is provided with flat lining with steel balls, to go through further grinding. Powder shall be discharged from discharging grating, ending the milling process.

Featuresof ball grinding mill

Ball mill is mainly composed of charging and discharging, cyclone and rotation parts (like redactor, minor rotation gear, motor, electric machine, etc). Hollow axis is made of steel parts with a lining replicable. Major rotation gear, machined by rolling wheel of casting, is lined with wearing plate with fine wear-resisting property. This machine runs stably and reliably

Ball mill technical parameters:

Type	Rotational Speed(r/min)	Balls Weight (t)	Material-in Size (mm)	Material-out Size(mm)	Capacity(t/h)	Motor power(KW)	Weight(t)
Φ900*1800	38	1.5	≤20	0.075-0.89	0.65-2	18.5	3.6
Φ1200*2400	32	3.8	≤25	0.075-0.6	1.5-4.8	30	11.5
Φ1200×2800	32	3.3-3.5	≤25	0.075-0.6	2-6	30	13
Φ1200×4500	32	7	≤25	0.074-0.4	1.6-5.8	45	13.8
Φ1500×3000	27	8	≤25	0.074-0.4	2-5	75	17
Φ1500×3500	27	6.75-8	≤25	0.075-0.4	3-7	75	17.5
Φ1800×3600	24	10.6-11.35	≤25	0.075-0.4	5-22	130	33.5
Φ1830×7000	24	25	≤25	0.074-0.4	7.5-17	210	36
Φ2100×3600	22	14-15.2	≤25	0.075-0.4	15-36	370	46.8
Φ2200×7500	21	33	≤25	0.074-0.4	16-29	380	56
Φ2400×3000	20.6	15.5-16.6	≤25	0.075-0.4	22-44	245	59
Φ2700×4500	20.7	48	≤25	0.074-0.4	12-90	430	102
Φ3200×4500	18	65	≤25	0.075-0.4	according to different technology	800	137
