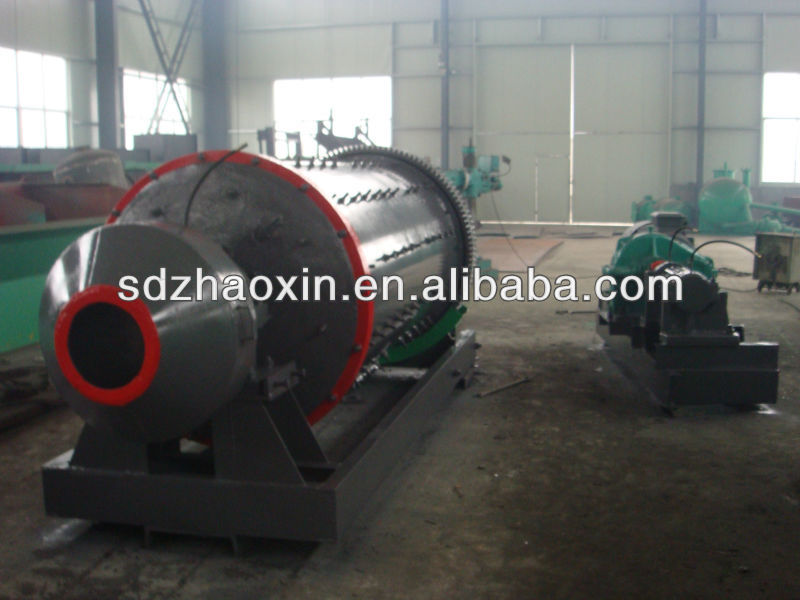

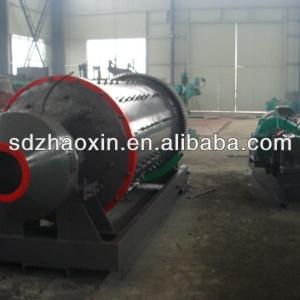

Ball Mill Machine

ball mill machine, 1.rolling bearing instead of sliding bearing, 2.large processing capacity, 3.ball mill start up easily - details see: https://www.machineto.com/ball-mill-machine-10314476

Condition:New	Type:Ball Mill	Motor Type:AC Motor	Power(W):11000-630000W
Capacity(t/h):0.3-200t/h	Place of Origin:Shandong China (Mainland)	Brand Name:zhaoxin	Model Number:GM Series
Weight:4210-145000kg	Certification:ISO9001:2008	Warranty:one year	After-sales Service Provided:Engineers available to service machinery overseas
revolution of the shell:17.5-41.5r/min	weight with balls:1.1-102t	motor power:11-1000KW

Features

This series of conical ball mill is a new type of energy-saving ball mill.

1.Convenient maintenance and high efficiency, with large diameter double row self-aligning roller bearings.

2.A conical structure is adopted near the discharging end, which reinforces the ball mill, and it is more important that it makes the steel balls classified naturally, with small diameters of the steel balls near the discharging opening and fine grain size of the materials milled.

3.By adopting an integral steel under-frame, the installation precision is high ,and it's easy for operation and installation, with a short cycle.

4.By adopting cylinder feeder instead of combined feeder, it is free from inertial impact. Thus, the mill runs stably, the time of maintenance with the mill closed dowm is reduced, and the efficiency is improved.

GM Series Ball Mill Machine

Model	Standard	The shell (r/min)	Weight with balls (t)	Size of supplying mineral	output t/h	Cooperate Motor		Dimension (L×W×H)	Weight kg	Productive capacity (t/d)
Model	Standard	The shell (r/min)	Weight with balls (t)	Size of supplying mineral	output t/h	Model	Power (KW)	Dimension (L×W×H)	Weight kg	Productive capacity (t/d)
GM0912	Φ900×1200	41.6	1.1	25	0.3~0.9	Y180L-8	11	3843×1850×1400	4210	5-10
GM1232	Φ1200×3200	35.1	5.3	25	2.2~5.5	Y280M-8	45	6340×2300×1850	11230	35-55
GM1244	Φ1200×4400	35.1	7.3	25	3.0~7.5	Y135S-8	55	7540×2300×1850	13210	60-80
GM1324	Φ1300×2400	30.2	4.5	25	1.5~3.5	Y280S-8	37	5035×2370×1880	10210	30-60
GM1563	Φ1500×6300	30.7	19.0	25	8.0~17.0	JR127-8	155	10730×2930×2060	24390	250-350
GM1830	Φ1830×3000	25.04	13.0	25	3.0~17.0	JR128-8	130	9525×3960×2250	29490	180-200
GM1840	Φ1830×4000	25.04	17.0	25	4.5~24	JR128-8	155	10520×3960×2250	32700	200-350
GM2122	Φ2100×2200	23.8	15.0	25	3.0~22.0	JR127-8	130	7775×4060×3400	38793	200-300
GM2430	Φ2400×3000	23.0	20	25	6~75	JR1413-8	280	9170×5005×3970	59850	400-600
GM2436	Φ2400×3600	23.0	26.6	25	6.5~82	JR1413-8	280	9770×5005×3970	63684	480-700
GM2742	Φ2700×4200	21.7	40	25	17.5~135	JR1512-8	400	11175×5610×4500	90420	600-900
GM3230	Φ3200×3000	18.7	44	25	50~90	TDMK500-36	500	11000×7200×5700	124000	1200-1500
GM3245	Φ3200×4500	18.7	65	25	100~145	TDMK600-36	630	13000×7200×5700	145000	2000-2500
