ball mill grinder

ball mill grinder, widely used in power-making production line, grind various ores with dry type and wet type material - details see: https://www.machineto.com/ball-mill-grinder-10314474

Condition:New	Type:Ball Mill	Capacity(t/h):70,1.3-70	Place of Origin:HEN,Henan China China (Mainland)
Brand Name:xinguang	Model Number:all	brand:xinguang	Payment terms:L/C, T/T
MOQ:1set	model:MQG	speed of bucket(r/min):21-41	ball load(t):1.53-27
feeding size(mm):<=25/<=15	discharging size(mm):0.074-0.4

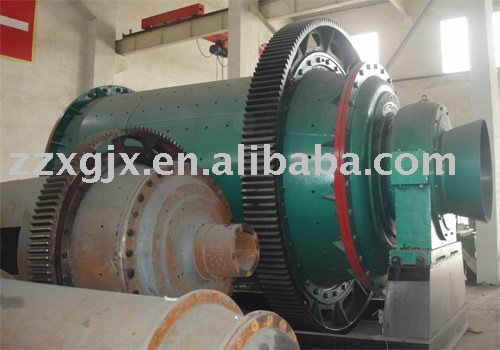

The ball mill grinder

Listing Description

Ball mill is widely used in powder-making production line including cement, building material, fertilizer, ferrous metal, and ceramics.

Detailed Description

The ball mill is a key equipment to grind the crushed materials, and the ball mill is widely used in powder-making production line including cement, silicate, new-type building material, refractory material, fertilizer, ore dressing of ferrous metal and non-ferrous metal, glass ceramics, etc,.And the ball mill can grind various ores and other materials with dry type and wet type. There are two kinds of ball mill, grate type and overfall type due to different ways of discharging material.

Features and Benefits

This machine changes the intrinsic grinding machine structure. Its body and ground plank are an integral whole, so when fixing, it can be lowered on a plane surface once only. Using double tiered roller axletree with centripetal spherical surface as the support of the host axletree can reduce energy cost by 30%.The intrinsic grille pattern forcing evacuation is instead by overfall pattern controlling one. It can improve the milling of the granule and the capacity be increased by 15-20%.

Main technical parameters:

Model	Speed of bucket (r/min)	Ball load (t)	Feeding size (mm)	Discharging size(mm)	Capacity (t/h)	Motor power (kw)	Weight (t)
MQG900×2100	41	1.53	≤15	0.074-0.4	0.5-1.3	15	3.9
MQG1200×2800	36	4.22	≤20	0.074-0.4	1.5-3.7	37	9.52
MQG1500×3500	32	8.55	≤25	0.074-0.4	3.3-8.2	75	15.63
MQG1500×5700	31	10	≤25	0.074-0.4	3.8-12	95	25
MQG1830×3600	26.5	12	≤25	0.074-0.4	4.0-20	130	32
MQG2100×3600	24.1	19.6	≤25	0.074-0.4	7.6-42	180	43.5
MQG2400×3600	22.4	23	≤25	0.074-0.4	11-52	240	54.3
MQG2700×3600	21	27	≤25	0.074-0.4	15-70	280	78.5
