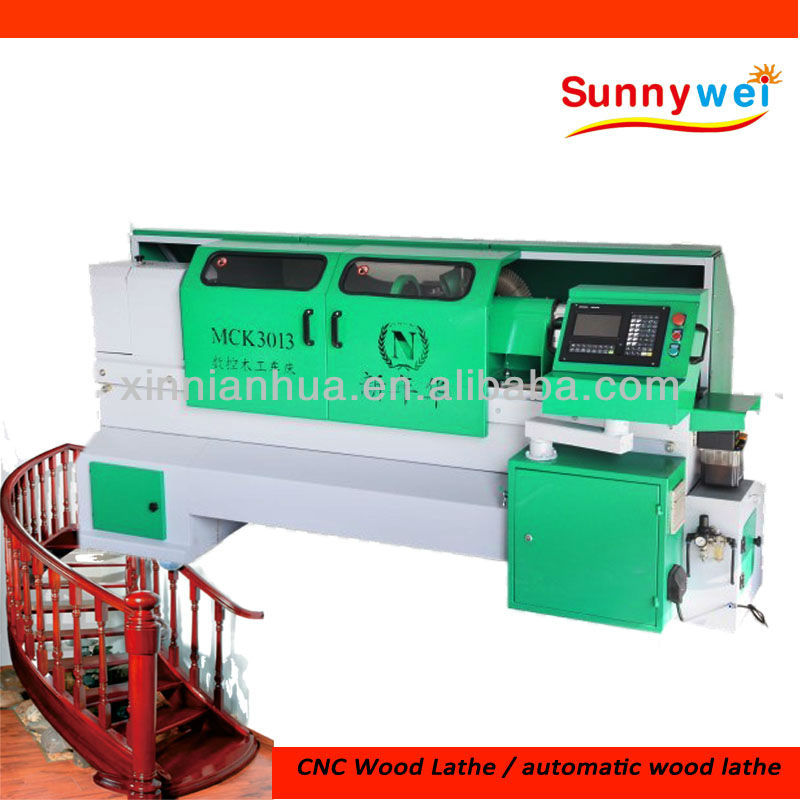

Automatic CNC wood copy lathe MCK3016/3013

Main Structure Of The Machine:

1.Alloyed cutting tool, suitable for various softwood and hardwood with smooth processing stroke.

2.Unique 2D scanning device transmitted scanned data to control through the accurate scan of master part

3.Designed with dust chokes for dust collection& environmental protection

4.Ball screw, accuracy reached 0.1m,with free unit increment adjustment, highly expend service life

5.Digital control system with LCD, easy operation the turning lathe with conductive instruction

system, simple and convenient application

6.Laser scanning modeling, no more traditional copy-modeling technology.

7.User-friendly operation,NC adjustable speed and stroke control

8.Able to accurately identify the specific data form the CAD output code

Main Specification And Technology Parameter:

Type	MCK3016	MCK3013
Ma working length	1600mm	1300mm
Spindle speed	1750-3500r/min	1750-3500r/min
Max working diameter	Φ180mm	Φ180mm
Dust exit	Φ100x1	Φ100x1
Total power	7.5kw	7.5kw
Air consumption	0.4-0.8mpa/m²	0.4-0.8mpa/m²
Weight	1900kg	1700kg
Machine dimension	3300*1100*1400mm	2900*1100*1400mm

CNC Wood Lathe / automatic wood lathe could turning the following items:

Staircases/Stairway Balusters/Stairway Newel Posts; Dining Table Legs; End Table Legs; Sofa Table Legs; Bar Stool Legs; Chair Legs; Chair Arm Posts; Chair Stretchers; Sofa/Bun Feet; Bed Rails; Lamp Posts; Baseball Bats and so on.
