Auto feeding multiple spinde drilling machine

Auto feeding multiple spinde drilling machine - details see: https://www.machineto.com/auto-feeding-multiple-spinde-drilling-machine-10348949
Condition:NewCNC or Not:CNCPlace of Origin:Shandong China (Mainland)Brand Name:mntools
Model Number:MTBJK86Acolor:as per request
Auto feeding multiple spinde drilling machine
contact supplier for Auto feeding multiple spinde drilling machine


Auto feeding multiple spinde drilling machine

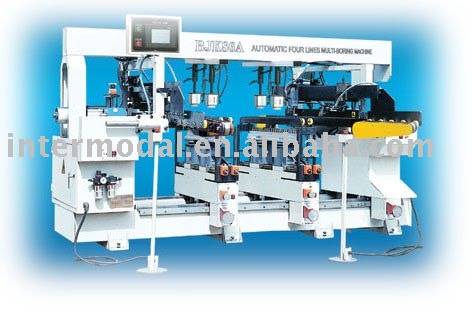

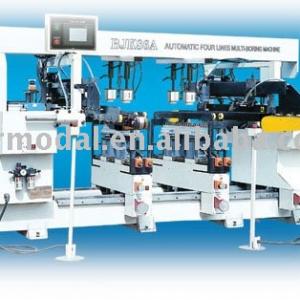

4 Lines auto feeding multi-spindle boring machine

Model No.
MTBJK86A

Distance between the bit

32mm
The quantity of boring box
Horizontal1+1
Vertica2×2
The quantity of the bit86
Max panel diameterΦ35mm
Max panel thickness60mm
Max panel width2450mm
Min. panel width
250mm
Feeding speed
57m/ min
Power8.2KW 380V 50HZ
Pneumatic power0.6~0.8Mpa
Machine size(L×W×H)mm3950×1800×1600mm
Packing size (mm)4100×1970×1800mm
Net weight1800Kg

Main characteristic:

    • 1. Using programmable logic control system ,powerful function a single set of machine can serve as three sets
    • 2. The drilling gear is driven by a motor directly and can revolve by 90
    • 3. Automatically feeding easy to operate ,high performance at reasonable price
Auto feeding multiple spinde drilling machine
Packaging Detail:exporting package
Delivery Detail:45days
