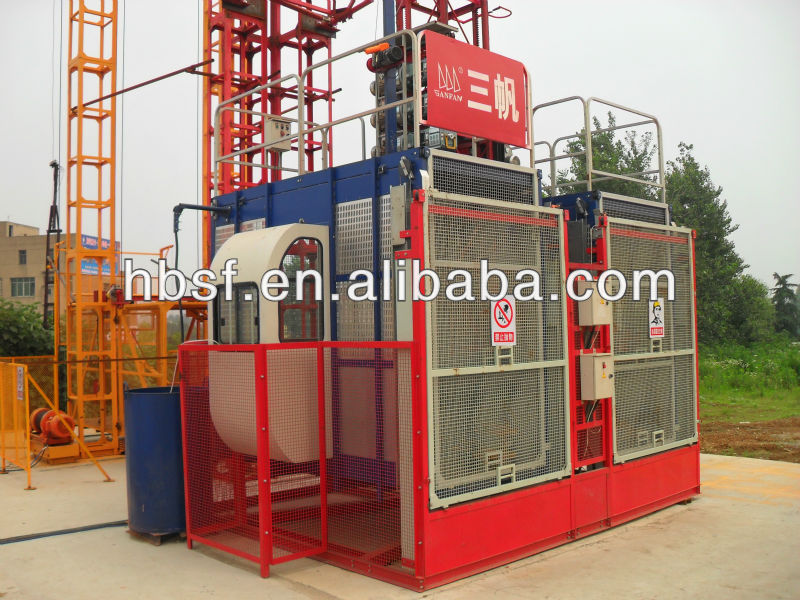

44 Years Manufacture Construction Hoist ,Construction Elevator With CE

Brief Introduction:

1.With44 yearsconstruction machine manufacture & sales experience, now SANFAN grows into a famous brand in China with everyone's join efforts.

2.Main products:

elavator,concrete pump,steel bar machine,water pump,mixing plants,construction vehicle,road machine,batching machine,concrete mixer,rammer,concrete vibrator etc....

Description Of Product:

Concrete mixing plant is composed of material supply,batching

system,mixing,electrial control and steel structure

1.main technical parameters

SSE100 1000kg Construction tower Hoist
Number	name	Quantity/set	Size(L*w*h)mm	Weight(kg)
1	Cage	1	3850*1800*2200	61
2	service platform	1	3185*1230*1450	220
3	standard knot	20	3000*614*600	100*20=2000
4	hoister	1	830*670*1200	125
5	steeve	1	4300*460*460	40
6	overline bridge	1	1136*500*260	40
7	windlass	1	1160*450*500	310
8	underpan	1	3620*850*100	100
9	Stop layer device	2	400*170*250	17.5*2=35
10	falling protector	2	350*300*270	30*2=60
11	control cabinet	1	500*420*1050	40
12	cliver	1	785*20*150	3

SSE200 2000kg Construction tower Hoist
Number	Name	Quantity/set	Size(L*w*h)mm	Weight(kg)
1	Standard knot	67	1525*725*800	140*67=9380
2	Driver element	2	1470*1230*600	610*2=1220
3	Suspension cage	2	3200*2000*2800	1500*2=3000
4	guardrail	1	1800*1875*50	900
5	Under pan	1	3320*2450*100	240
6	Cable drum	2	1350*800*800	166*2=332
7	Cable guide	14	1200*1000*60	9.3*14=130
8	Attachment device	14	1500*1600*200	93*14=1300
9	steeve	1	2200*1500*100	78

More details about Construction Hoist for materials

-Rated load is 1000kg

-Standard height is 30 meters

-Can be upto 81 meters, each height add-on is 3 meters, 97kg.

-Lifting speed 17m/min

-Cage size: 3800*1800*2000mm

-Whole set weight 4000kg (with 30m height)
