2013 New Model 3245 Ball Mill Machine High Performance With Low Price

Ball Mill Machine is a type of grinder, it is a cylindrical device used in grinding (or mixing) materials like ores, chemicals, ceramic raw materials and paints.

Ball Mill Machine rotate around a horizontal axis, partially filled with the material to be ground plus the grinding medium. Different materials are used as media, including ceramic balls, flint pebbles and stainless steel balls. An internal cascading effect reduces the material to a fine powder. Industrial Ball Mill Machine s can operate continuously, fed at one end and discharged at the other end. Large to medium-sized Ball Mill Machine s are mechanically rotated on their axis, but small ones normally consist of a cylindrical capped container that sits on two drive shafts (pulleys and belts are used to transmit rotary motion).

Ball Mill Machine mainly used in beneficiation production line ,it’s main job to grinding materials into powder size ,and then send materials into next step to extraction .Complete Ball Mill Machine consist of feeding hopper , lining plate , Ball Mill Machine tube , balls (spare parts), gearset , discharging hopper ,underframe etc .

Ball Mill Machine can processing various ore materials , most of ore raw materials can processing by our Ball Mill Machine , Sentai Mining Machinery Factory provideDry /Wet/ Water colling Ball Mill Machine .

Ball Mill Machineused in the field ofConstruction ;Beneficiation ; Chemical industry ; Food industry etc .

Technology data of Ball Mill Machine

Model	Speed of bucket (r/min)	Weight of ball	Size of feed opening(mm)	size of outputting feed (mm)	Production (t/h)	Power (kw)	Weight (T)
900×1800	38	1.5	≤20	0.075-0.89	0.65-2	18.5	3.6
900×3000	38	2.7	≤20	0.075-0.89	1.1-3.5	22	4.6
1200×2400	32	3.8	≤25	0.075-0.6	1.5-4.8	45	12.5
1200×3000	32	5	≤25	0.075-0.4	1.6-5	45	12.8
1200×4500	32	7	≤25	0.075-0.4	1.6-5.8	55	13.8
1500×3000	27	8	≤25	0.075-0.4	2-5	90	17
1500×4500	27	14	≤25	0.075-0.4	3-6	110	21
1500×5700	27	15	≤25	0.075-0.4	3.5-6	132	24.7
1830×3000	24	11	≤25	0.075-0.4	4-10	180	28
1830×6400	24	23	≤25	0.075-0.4	6.5-15	210	34
1830×7000	24	25	≤25	0.075-0.4	7.5-17	245	36
2200×5500	21	30	≤25	0.075-0.4	10-22	370	48.5
2200×6500	21	30	≤25	0.075-0.4	14-26	280	52.8
2200×7500	21	33	≤25	0.075-0.4	16-29	475	56

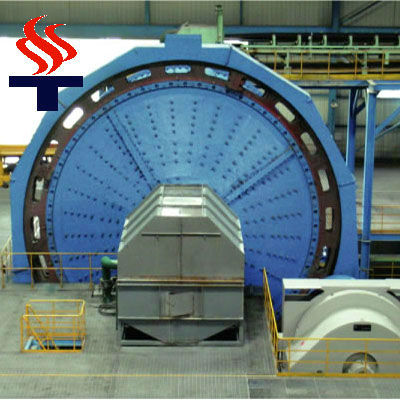

Photos show of Ball Mill Machine
