2013 Hongxing micro China mini cement ball mill machine

China cement ball mill machine:, 1.OEM,CE,ISO, 2.Stable condition,overall annealing, 3.large CNC lathes, 4.Good wear-resistant - details see: https://www.machineto.com/2013-hongxing-micro-china-mini-cement-ball-mill-machine-10314589

Condition:New	Type:cement mill	Motor Type:AC Motor	Power(W):245-4200kw
Capacity(t/h):6.5-135t/h	Place of Origin:Henan China (Mainland)	Brand Name:Hongxing	Model Number:Hongxing cement mill
Dimension(LWH):as requested	Weight:43.8-485t	Certification:ISO9001/CE	Warranty:12 months
After-sales Service Provided:Engineers available to service machinery overseas	Name:2013 Hongxing micro China mini cement ball mill machine	Application:cement, stone, rock, ore,mining	Energy:saving
Structure:reasonable	Maintenance:Convenient	Running cost:Low	Installation:Under technical guidance
Operation:Easy	Running State:Stable	Adaptability:Strong

Overview of 2013 Hongxing micro China mini cement ball mill machine
ISO/CE Open Flow Cement Mill Price, which is also called cement making plant, is the key equipment for crushing the materials again after they are primarily crushed. It is widely used for the dry type and wet type powder grinding of various rocks and other materials that can be ground in the production industries such as cement, silicon product, new building material, refractory, ferterlizer, glass and ceramics.

-----------------------------------------------------------

Application of 2013 Hongxing micro China mini cement ball mill machine
The China cement mill is of growing kinds. The China cement mills vary from traditional ball mill to new European trapezium grinding mill. Such cement machinery as cement making machine, cement grinding mill and cement crusher plays a very important role in the cement making industry. It can crush or grind the cement to required fineness for industry application. In the complete cement production line, vertical roller mill is used in three processes. In addition, the raw material mill is also commonly used in the cement making process and it has many advantages.

Product specification (m)	Milling form	Transmission form	Gear box		Motor power (kw)	Production capacity (t/h)	Total weight (t)
Product specification (m)	Milling form	Transmission form	Model	Speed reduction ratio	Motor power (kw)	Production capacity (t/h)	Total weight (t)
φ1.83×7	Open flow	Brim	ZD60	4.5	245	6.5-8	43.8
φ2.2×7.5	Circle flow	Brim	ZD70	5	380	8-10	64.8
φ2.2×11	Open flow	Central shaft	D110	35.5	630	12-13	104.6
φ2.2×13	Open flow	Central shaft	D110	35.5	630	16-18	114
φ2.4×13	Open flow	Central shaft	D110	35.5	800	20-23	130.6
φ2.6×13	Open flow	Central shaft	MFY100	19.5	1000	28-32	158
φ3×9	Circle flow	Brim	D125	41.2	1000	28-36.5	167
φ3×11	Circle flow	Central shaft	D140	42.8	1250	36-47	180
φ3.2×13	Open flow	Central shaft	D140	36.5	1600	45-50	225
φ3.5×13	Circle flow	Brim	JDX1000	5.84	2000	60-65	275
φ3.8×13	Open flow	Central shaft	MFY250	16.5	2500	60-62	320
φ4.2×13	Open flow	Central shaft	JQS3550	15.6	3530	85-87	380
φ4.6×14	Circle flow	Central shaft	JSI160-C	14.6	4200	120-135	485

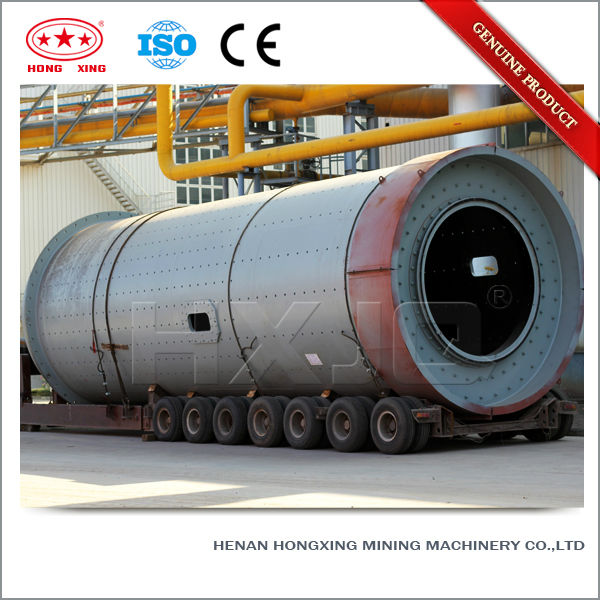

Pictures of cement mill:

About Us

We Are Factory ( NOT Dealer )
All machineries from Henan Hongxing Mining Machinery Manufactory are made by ourselves, with lower price, good quality and assured full after service.
So please buy machine from factory.

Delivery

We have developed long and good relationship with many shipping agents. Ocean freight partners are: APL, COSCO, OOCL, CSCL, MSC, etc. and train shipping is also available. The perfect shipping way and best service with lowest price are always provided for customers.
